The product is to service at such control circuit as AC50~60Hz, voltage of 380VAC or 220VDC and current of 10A to automatically control machine tool, limit movement and action of drive mechanism and control program.
The nominal service conditions include an ambient temperature of -25℃+40℃, an ambient relative humidity of 90%, and altitude of 2000m and protection degree of IP65. It complies with the standard of IEC337-1 and GB14048.5-2001.
|
ltem
|
QXCK-T model double insulation, according to cenelec en50047 oneline incoming mouth.
|
|
|
Metal head
direcacting
type
|
Stell- roller
directacting
type
|
Metal thermoplastic
roller tumbler
directacting type
|
Thermoplastic roller
tumbler directacting
type
|
Adjustable length and
thermoplastic roller
tumbler type
|
Cylindrical tumbler type
glass fabric cup
Diameter=3mm
length=125mm
|
Multidirection
type
|
|
Machime life(million times)
|
15
|
10
|
15
|
10
|
15
|
15
|
10
|
|
Motion speed(m/s)
|
0.5
|
0.3
|
1
|
1.5
|
1.5
|
0.5
|
1.5
|
|
Protection degree
|
IP65
|
|
Rated work charcters
|
ALTIPAK AC 15; A 300(UE=240V, LE=3A)ALTIVAR DC13;Q 300(UE=250V, LE=0.27A)
|
|
Boundary dimensions: width×depth×heigh
|
58×30×50
|
|
Complete switch(2 poles 1-close+1- open, quick)
|

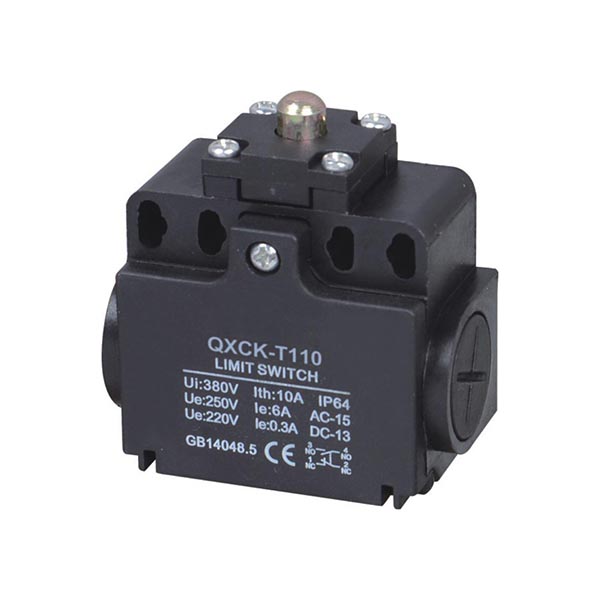

QXCK-T110
|
QXCK-T102
|
QXCK-T118
|
QXCK-T121
QXCK-T128
|
QXCK-T139
QXCK-T145
|
QXCK-T155
|
QXCK-T106
|
