The product is to service at such control circuit as AC50~60Hz, voltage of 380VAC or 220VDC and current of 10A to automatically control machine tool, limit movement and action of drive mechanism and control program.
The nominal service conditions include an ambient temperature of -25℃+40℃, an ambient relative humidity of 90%, and altitude of 2000m and protection degree of IP65. It complies with the standard of IEC337-1 and GB14048.5-2001.
|
ltem
|

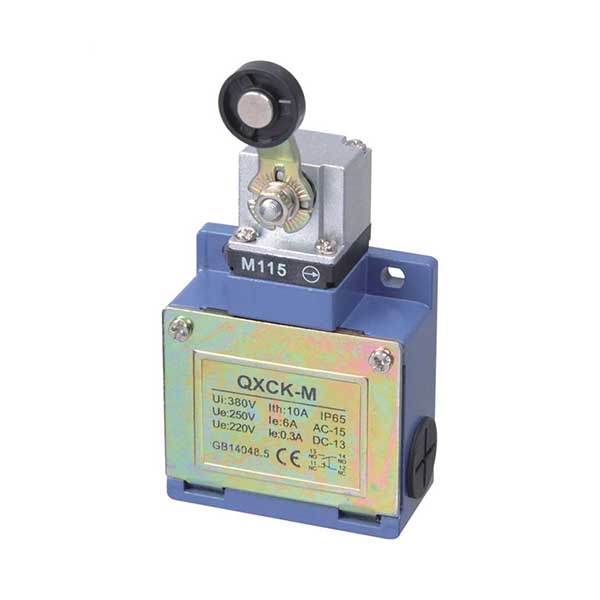

QXCK-M model,metal three line incoming mouths.
|
|
|
Metal head
direcacting
type
|
Meta stell-roller
directacting
type
|
Metal thermoplastic roller tumbler
directacting type，single direction with horizontalmovement
|
Adjustable length and
thermoplastic roller
tumbler type
|
Metal thermoplastic
roller tumbler
directacting type
|
Multidirection
type
|
|
Machime life(million times)
|
15
|
15
|
15
|
15
|
15
|
10
|
|
Motion speed(m/s)
|
0.5
|
1
|
1
|
1.5
|
1
|
1.5
|
|
Protection degree
|
IP65
|
|
Rated work charcters
|
ALTIPAK AC 15; A 300(UE=240V, LE=3A)ALTIVAR DC13;Q 300(UE=250V, LE=0.27A)
|
|
Boundary dimensions:width×depth×heigh
|
63×30×64
|
|
Complete switch(2 poles 1 -close+1- ope,quick)
|
QXCK-M110
|
QXCK-M102
|
QXCK-M121
|
QXCK-T141
QXCK-T139
|
QXCK-M115
|
QXCK-M106
QXCK-M108
|
