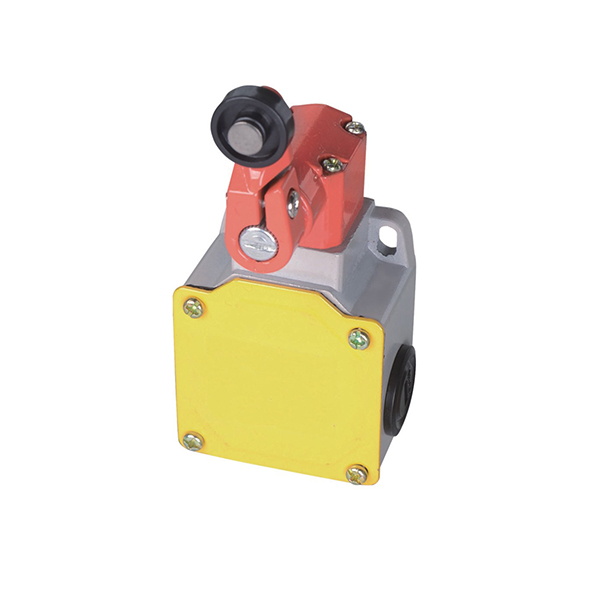

The product is to service at such control circuit as AC50~60Hz, voltage of 380VAC or 220VDC and current of 10A to automatically control machine tool, limit movement and action of drive mechanism and control program.
The nominal service conditions include an ambient temperature of -25℃+40℃, an ambient relative humidity of 90%, and altitude of 2000m and protection degree of IP65. It complies with the standard of IEC337-1 and GB14048.5-2001.
|
Code name for protection enclosure mode
|
|
G
|
single rocker、single rotary wheel、automatic reset、arbirtrary angle of installation of rocker
|
|
U
|
single rocker with length adjustable. one wheel automatic reset
|
|
B
|
direct action、automatic reset
|
|
C
|
direct action、automatlc reset、with cushion
|
|
D
|
direct action、with roller、automatic reset、with cushion
|
|
E
|
angle lever、with roller、automatic reset
|
|
F
|
angle lever、with roller、automatic reset
|
|
G
|
single rocker、single rotary wheel、automatic reset、arbirtrary angle of installation of rocker
|
|
U
|
single rocker with length adjustable. one wheel automatic reset
|
|
W
|
length of plastic bar adjustable、automatic reset
|
|
T
|
fork-shape bar、two wheel、can't automatic reset
|
|
R
|
direction type、automatic reset
|
