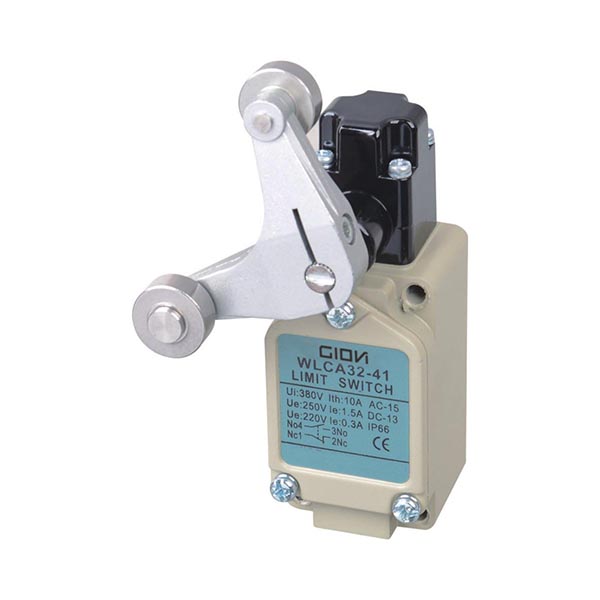

WLCA32-41-43-Wenzhou Fuka Imp. & Exp. Co.,Ltd Wenzhou Fuka Electronic Co.,Ltd

Double-circuit type of limit switch, is widely used
With strong aluminum cast outer shell
High mechanical strength
Structure preventing oil, water and pressure
Indicating plate with setting position is installed in it, so it is easy to maintain
Various of actuators is taken convenience for using
Built-in contact stand has double-spring, so it has long mechanical life

Model	WL-CA2-2 WL-CA12-2-Q	WL-CA32-41-43	WL-CL	WL-D	WL-D1/D2/D3	WL-NJ/NJ-30 /NJ-2/NJ-S2
Triggering	30°convex trigger	30°convex trigger	Any moving part	At the end	30°convex trigger	Any moving part
Contact operation	Contacts attract -Contracts separate
Max triggering speed	1.3m/s	1.3m/s	1.3m/s	0.5m/s	0.5m/s	1.3m/s
Min restoring force	1360g	1200g	142g	2720g	2720g	120g
Min restoring force	227g	28g	910g	910g	50g
Weight (kg)	0.33	0.34	0.3	0.251	0.251	0.286

Characteristics Of Contact Module
Rated operating characteristics	~AC-15: A300(Ue=240V, le=3A):1 the=10A --DC-13: Q300(Ue=250V, le=0.27A): comply with IEC60947-5-1
Rated insulation voltage	Among homopolar terminals: AC 1000V(600V), 50/60Hz 1min Between charged metal part and earth wire: AC2000V(1500V), 50/60Hz 1min Uimp 2.5kV Among terminals and non-charged metal part: AC2000V, 50/60Hz 1min Uimp 2.5kV
Insulation sistance	100MΩ above (megohmmeter of 500VDC)
Operating equency	120 times/min
Electrical life	750,000 times
Contact resistance	Less than 25MΩ

Environmental Characteristics
Normative reference	Product	IEC60947-5-1, EN60947-5-1, UL508, CSAC22-2N°14
Normative reference	Components	IEC60204-1, EN60204-1
Ambient temperature	Function	-10~+80℃
Ambient temperature	Storage	-40~+80℃
Vibration resistance	Comply with IEC60068-2-6	10-55Hz complex amplitude 1.5mm
Shock resistance	Comply with IEC60068-2-27	Maximum 300m/s2 (30G Less than)
Degree of protection		IP67 NEMA：3，4，14
Mechanical life		15,000,000 times
