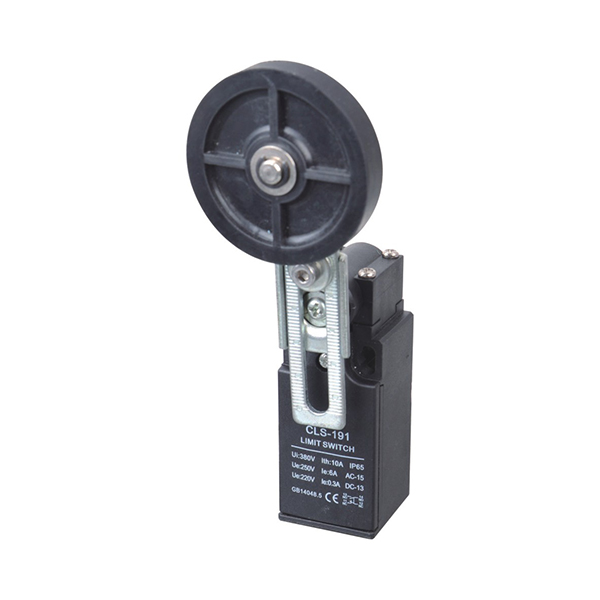

Economical & plastic type
Stainless steel roller, punch and spring
Swing amplitude, extra large±95°
M20x1.5 cable gland that can be equipped
|

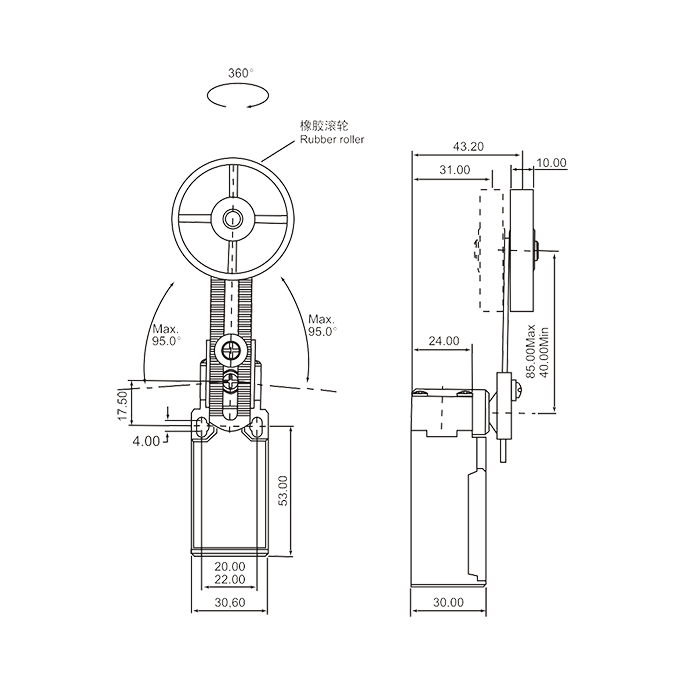

Model
|
CLS
|
101
|
103
|
111
|
127
|
191
|
|
Operating force
|
OF(Max.)
|
700g
|
700g
|
700g
|
700g
|
500g-cm
|
|
Release force
|
RF(Min.)
|
200g
|
200g
|
200g
|
200g
|
100g-cm
|
|
Pre-travel
|
PT(Max.)
|
1.8mm
|
1.8mm
|
1.8mm
|
1.8mm
|
20°
|
|
Tripping position
|
TP±10%
|
2.0mm
|
2.0mm
|
2.0mm
|
2.0mm
|
22.5°
|
|
Movement differential
|
MD(Max.)
|
1.2mm
|
1.2mm
|
1.2mm
|
1.2mm
|
10°
|
|
Over travel
|
OT(Min.)
|
4.0mm
|
4.0mm
|
4.0mm
|
4.0mm
|
75°
|
|
Total travel
|
TT(Min.)
|
5.8mm
|
5.8mm
|
5.8mm
|
5.8mm
|
95°
|
|
Rotary indexing
|
|
|
|
|
|
22.5°
|
|
Double Break Mechanism
|
INO+INC Force Break snap action
|
|
Rated Voltage / Current
|
10(4)A, 125, 250VAC / 6(2)A, 380VAC For inductance Load, Cosφ=0.4
|
|
Contact Resistance
|
25mΩ max. (initial value)
|
|
Insultation Resistance
|
100mΩ min. (at 500VDC)
|
|
Dielectric Strength
|
1000VAC, 50/60 HZ for 1 minute between terminals of the same polarity
|
|
1500VAC, 50/60 HZ for 1 minute between current-carrying and non-current-carrying metal parts
|
|
1500VAC, 50/60 HZ for 1 minute between each terminal and ground
|
|
Electrical Life
|
500, 000 at 10A 250VAC Resistive
|
|
Mechanical Life
|
10, 000, 000 operations min. (under rated conditions)
|
|
Operating Speed
|
5mm/s to 0.5m/s
|
|
Degree of Protection
|
IP65
|
|
Ambient Temperature Rised
|
Max 30℃ over ambient temperature at rated voltage/current
|
|
Conformed Standards
|
Cenelec EN 50041, EN 50047, IEC 337-1, VDE 0660
|
|
Operating Temperature
|
-5℃~+65℃ (with no icing)
|
|
Storage Temperature
|
-5℃~+65℃ (with no icing)
|
|
Ambient Operating Humdity
|
95% RH Max.
|
|
Shock Resistance
|
Mechanical durable: 1000m/s2 min.
|
|
Malfunction: 300m/s2 min.
|
|
Vibration Frequency
|
Malfunction: 10 to 55Hz 1.5mm double amplitude
|
|
Terminal Screw Torsional Force
|
6-8 kgf-cm
|
|
Other Screw Torsional Force
|
Cover 12-14 kgf-cm/Head 8-9 kgf-cm/Mounting 50-60 kgf/cm
|
|
Bare Wire Diameter
|
φ2 Max.
|
|
Cable Diameter
|
φ12 Max.
|
Note: Product with spring, its usable range of operating part is within one third of the whole spring length from the front end of spring.
