It is suitable for circuit with rated voltage to DC1500V, rated current 30A and rated breaking capacity to 33kA, as short circuit and overload protection.
It is especially suitable for bus boxes of circuit systems.
|

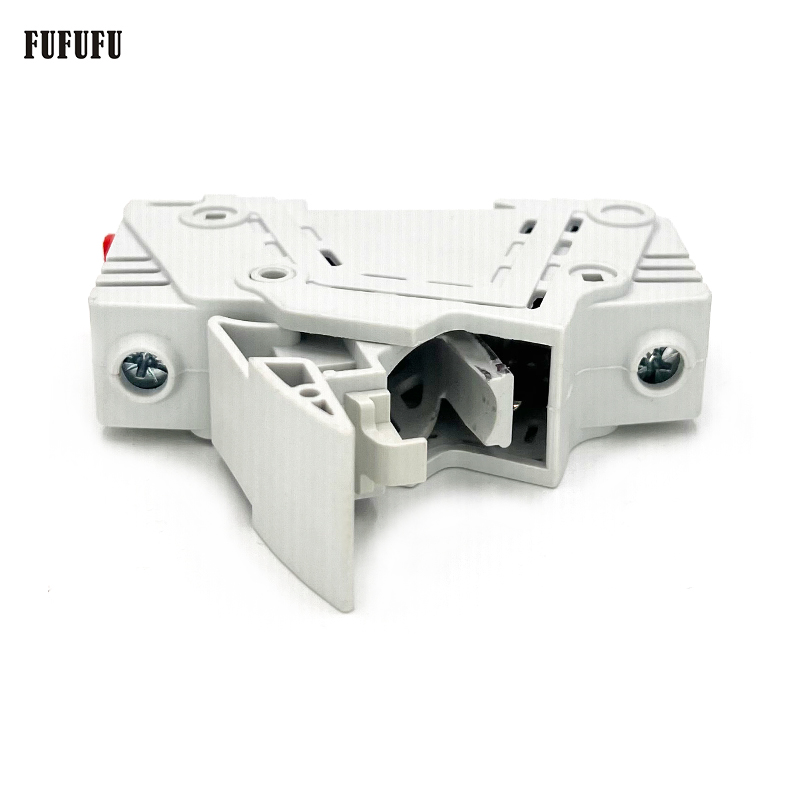

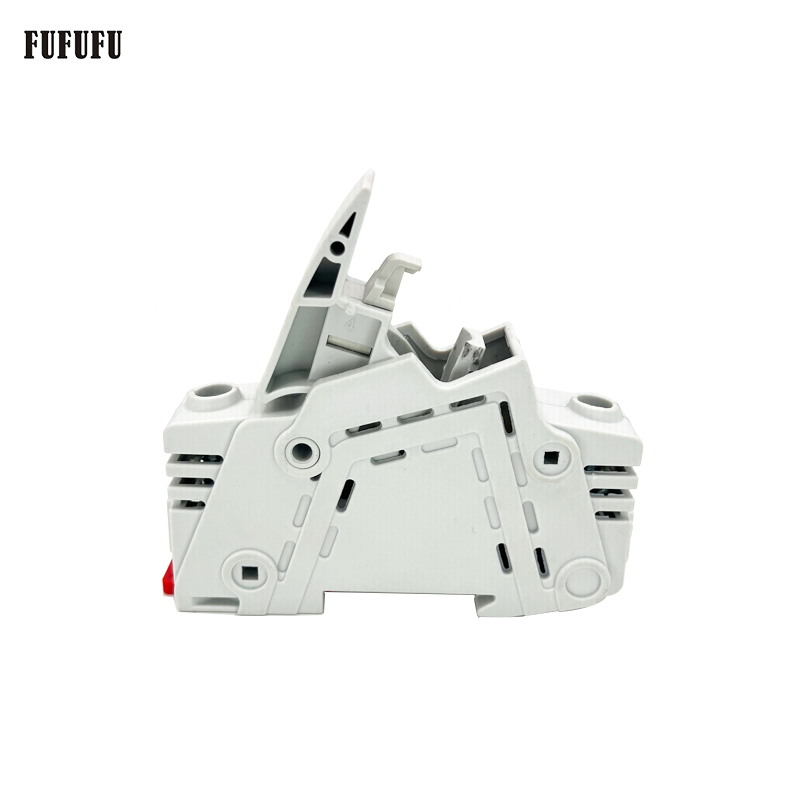

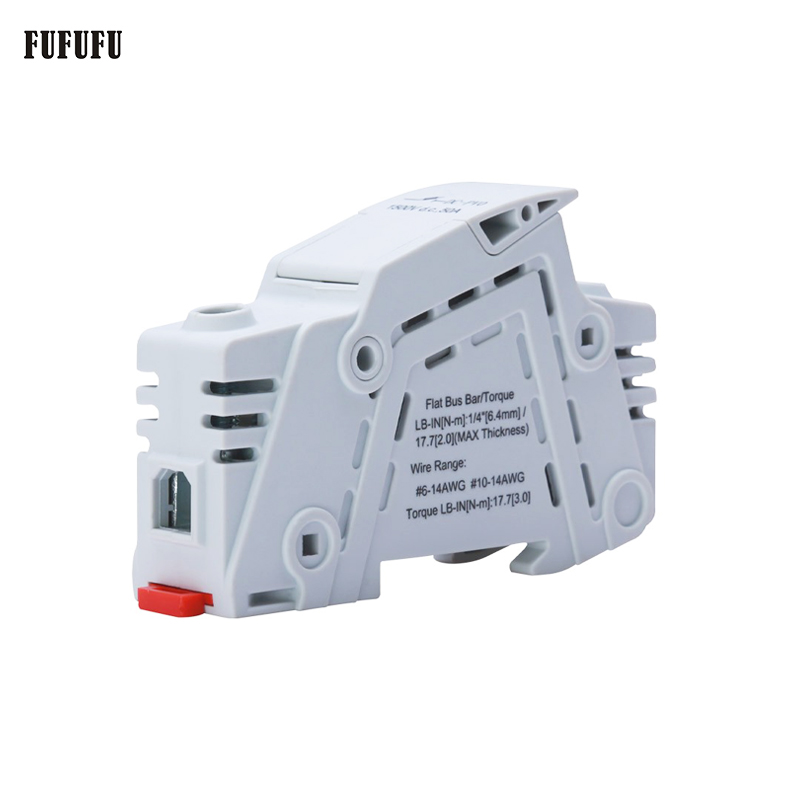

Model No.
|
FKPV14X51
|
|
Rated Voltage
|
1500Vdc
|
|
Rated Current
|
30A
|
|

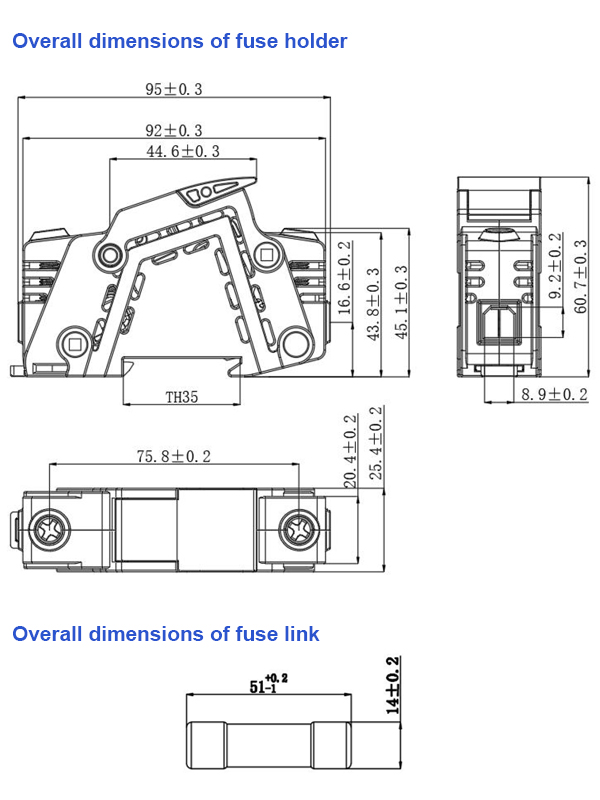

Suitable Fusible Core Specification
|
14×51 mm
|
|
Protection Characteristics
|
gPV
|
|
Shell Material
|
PBT
|
|
Flame Retardant Rating of Shell
|
UL94-V0
|
|
Terminal Screw Torque
|
3N.m
|
|
Conductor Cross-Sectional Area
|
2.5~21 mm²
|
|
Installation Method
|
TH35 Rail
|
|
Ipk Rated Peak Withstand Current
|
33kA
|
|
Temperature Tolerance
|
﹣25℃~60℃
|
|
Standard
|
GB/T 13539.6-2013 IEC 60269-6: 2020
|
