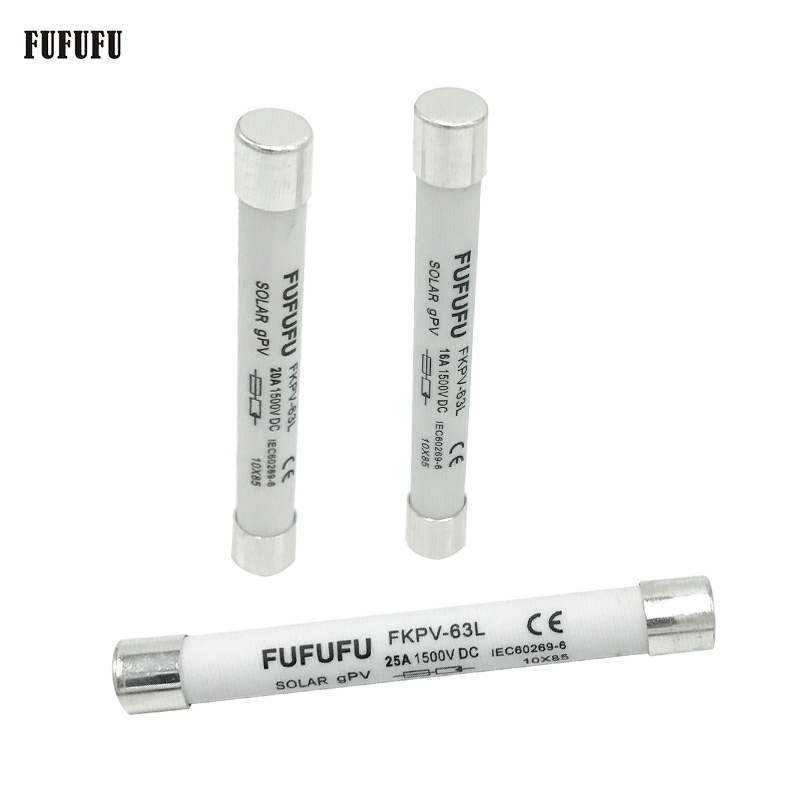

The Series of fuses suitable for solar photovoltaic power generation systems, rated voltage to 1500V, rated current to 630A, are used in photovoltaic power generation equipment as a photovoltaic module string and photovoltaic array for overcurrent protection, and photovoltaic panels and batteries connected in series and parallel, to charge variable flow system for short circuit breaking protection, in the photovoltaic station and inverter rectifier system for short-circuit breaking protection, as well as photovoltaic power generation system inrush current and short circuit fault voltage for quick break protection, rated breaking capacity to 10-50kA, products confirms to IEC60629.1 and 60629.6.
|
Model Number
|
Current Rating
|
Voltage Rating
|
Energy Integrals I²t (A²s)
|
Watts Loss(W)
|
|
Pre-Arcing
|
Total Clear
|
0.8In
|
1.0In
|
|
FKPV-63LX
|
2A
|
1500Vdc
|
4
|
8
|
1.0
|
2.0
|
|
FKPV-63LX
|
3A
|
1500Vdc
|
6
|
11
|
1.1
|
2.1
|
|
FKPV-63LX
|
4A
|
1500Vdc
|
8
|
14
|
1.2
|
2.2
|
|
FKPV-63LX
|
5A
|
1500Vdc
|
11
|
22
|
1.4
|
2.4
|
|
FKPV-63LX
|
6A
|
1500Vdc
|
15
|
30
|
1.5
|
2.6
|
|
FKPV-63LX
|
8A
|
1500Vdc
|
9
|
35
|
1.8
|
3.0
|
|
FKPV-63LX
|
10A
|
1500Vdc
|
10
|
98
|
2.2
|
3.5
|
|
FKPV-63LX
|
12A
|
1500Vdc
|
12
|
120
|
2.5
|
3.8
|
|
FKPV-63LX
|
15A
|
1500Vdc
|
14
|
170
|
3.0
|
4.8
|
|
FKPV-63LX
|
20A
|
1500Vdc
|
34
|
400
|
3.5
|
6.2
|
|
FKPV-63LX
|
25A
|
1500Vdc
|
65
|
550
|
4.0
|
7.2
|
