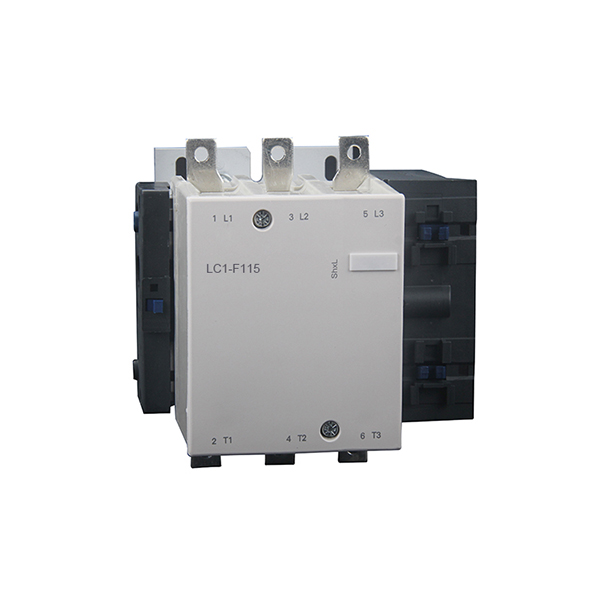

LC1-F AC contactor is suitable for using in the circuits u to the rated voltage
380V AC 50/60Hz,current 800A ,for long distance breaking circuit and frequently or controling the motor.It also can be sed for the conntrol of distrbution circuits of rated current from 115A to 800A.It conforms to IEC60947-4-1

Type		Rated	Max power ratings of 3-phase motors in category AC-3(kW)							Operating	Electrical	Mech anicallifex104
		operational								frequency	life
										(time/hour)	AC-3x104
			220V	380V	415V	440V	550V	660V	1000V	AC-3
			230V	400V				690V
LC1-F115		115	30	55	59	59	75	80	65	1200	120	1000
LC1-F1154		115	30	55	59	59	75	80	65	1200	120	1000
LC1-F150		150	40	75	80	80	90	100	65	1200	120	1000
LC1-F1504		150	40	75	80	80	90	100	65	1200	120	1000
LC1-F185		185	55	90	100	100	110	110	100	600	100	600
LC1-F1854		185	55	90	100	100	110	110	100	600	100	600
LC1-F225		225	63	110	110	110	130	129	100	600	100	600
LC1-F2254		225	63	110	110	110	130	129	100	600	100	600
LC1-F265		265	75	132	140	140	160	160	147	600	80	600
LC1-F2654		265	75	132	140	140	160	160	147	600	80	600
LC1-F330		330	100	160	180	200	220	220	160	600	80	600
LC1-F3304		330	100	160	180	200	220	220	160	600	80	600
LC1-F400		400	110	200	220	250	257	280	185	600	80	600
LC1-F4004		400	110	200	220	250	257	280	185	600	80	600
LC1-F500		500	147	250	280	295	355	335	335	600	80	600
LC1-F5004		500	147	250	280	295	355	335	335	600	80	600
LC1-F630		630	200	335	375	400	400	450	450	600	80	600
LC1-F6304		630	200	335	375	400	400	450	450	600	80	600
LC1-F780		780	220	400	425	425	450	475	40	600	80	600
LC1-F7804		780	220	400	425	425	450	475	450	600	80	600
LC1-F800		800	250	450	450	450	450	470	450	600	80	600
