- Timer with Digital Setting and LED Display
- Easy-To-Read High Intensity red LED Display
- High accuracy time delay
- Time range: 9.99s, 99.9s, 999s, 9.99min, 99.9in, 999min, 9.99h, 99.9h, 999h
- Power Supply
Non universal voltage: AC(V) 12 ,24, 110, 220 ,240, 380 50/60Hz,DC(V) 12, 24 .
- Output Contacts rated 5A at 120/240 VAC and 30 VDC, resistive load.
- Front panel mounted with a P3G-08/US-08 Socket
- On-Delay version
- Two delayed contact (DPDT Relay) Output
CLASSIFICATION
|
DIGITAL TIMER
|
|
MODEL
|

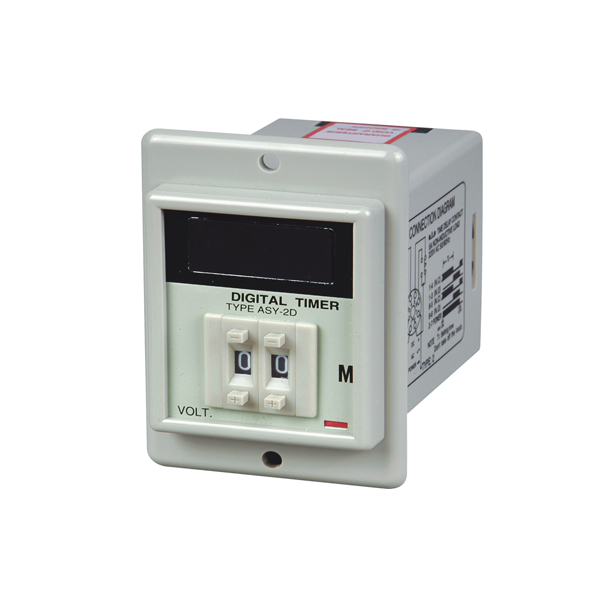

ASY-2D
|

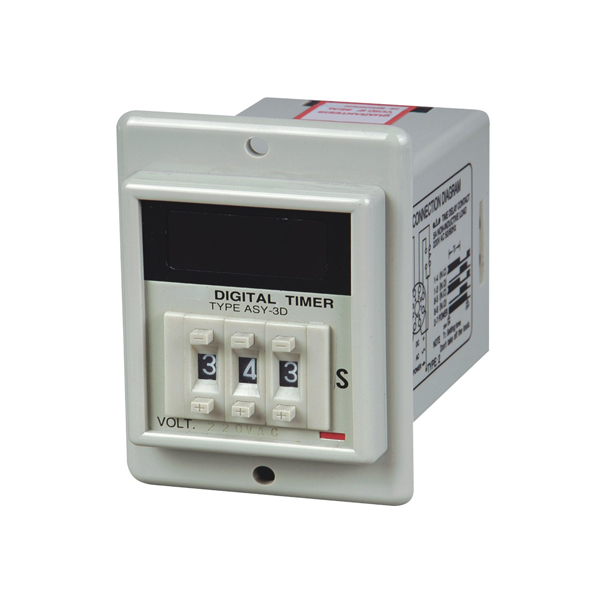

ASY-3D
|

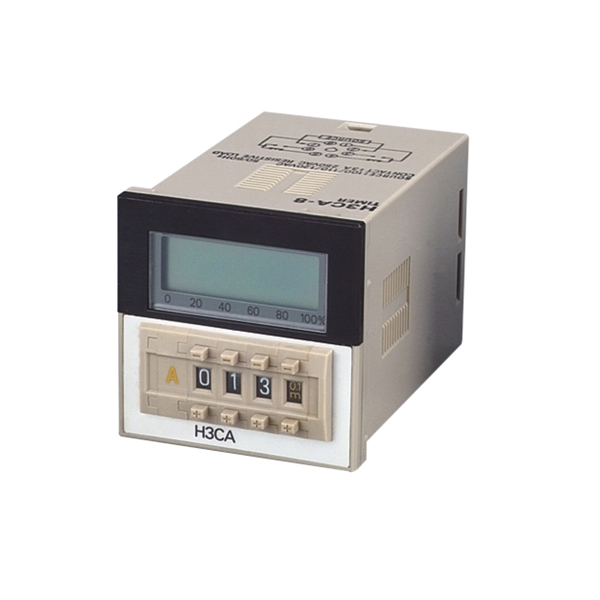

H3CA-A
|
H3CA- 8
|
APPEARANCE
|
|
|
|
|
DIMENSIONS
|
88H×58W×68D
|
88H×58W×68D
|
48H×48W×81.6D
|
48H×48W×81.6D
|
MOUNTING
& SOCKET
|
SURFACE(-N)
|
|
|
PF113A(E)
|
PS-08 P2CF08
|
FLUSH(-Y)
|
US-08 P3G-08
|
US-11
|
US-08 P3G-08
|
FULL TIMING RANGE
|
SEC:9.9,99 MIN:9.9,
99 HR:9.9,99
|
SEC:9,99,99.9,999 MIN:99.9
,999 HR:99.9,999
|
0.1SEC~9990HRS
|
0.1SEC~9990HRS
|
RATED VOLTAGE
|
DC(V):12,24 AC(V):12,24,110,220,240, 50/60Hz
|
AC(V):110~240(50/60Hz) 12VDC,24VDC/AC
(50/60Hz)24 to 240V DC/AC
|
DISPLAY
|
LED
|
LCD
|
LCD
|
|
CONTACT
|
MODEL
|
ASY-2D
|
ASY-2B
|
ASY-3D
|
ASY-3B
|
H3CA-A
|
H3CA-8
|
TIME LIMIT 1C
|
|
5A
|
|
5A
|
5A
|
|
TIME LIMIT 2C
|
5A
|
|
5A
|
|
|
5A
|
INSTANTANEOUS 1C
|
|
5A
|
|
5A
|
5A
|
|
|
LIFE
|
MECHANICAL
|
5×106 times
|
107 times
|
107 times
|
ELECTRICAL
|
105 times
|
105 times
|
105 times
|
|
ACCURACY
|
REPEAT ERROR
|
±0.5% max
|
±0.5% max
|
±0.5% max
|
SETTING ERROR
|
0
|
±0.5% max
|
±0.5% max
|
VOLTAGE ERROR
|
±0.05 sec
|
±0. 5% max
|
±0.5% max
|
TEMP. ERROR
|
±0.05 sec
|
±0.5% max
|
±0.5% max
|
RESET TIME
|
0.3 sec max
|
0.5 sec max
|
0.5 sec max
|
CONSUMED POWER
|
3VA
|
AC约4VA DC约2W
|
AC约5VA DC约1.5W
|
AMBIENT TEMPERATURE
|
-10℃~+55℃
|
-10℃~+55℃
|
-10℃~+55℃
|
AMBIENT HUMIDITY
|
48~85%RH
|
35~85%RH
|
35~85%RH
|
WEIGHT
|
230g
|
100g
|
100g
|
CONNECTION DIAGRAMS & TIMING CHART
|
40B
|
40A
|
40B
|
40A
|
42G
|
42H
|
