Models

QZ1300

QZ1301

QZ1303

QZ1305

QZ1306

OF(Max.)

350g

300g

300g

350g

350g

RF(Min.)

114g

50g

50g

114g

114g

PT(Max.)

0.4mm

4mm

4mm

0.4mm

0.4mm

OT(Min.)

0.13mm

1.6mm

1.6mm

1.6mm

1.6mm

MD(Max.)

0.05mm

1.3mm

1.3mm

0.05mm

0.05mm

FP(Max.)

20.6mm

31.8mm

OP(mm)

15.9±0.4

17.4±0.8

28.6±0.8

28.2±0.5

21.5±0.5

Weight(kg)

0.033

0.035

0.039

0.034

0.038

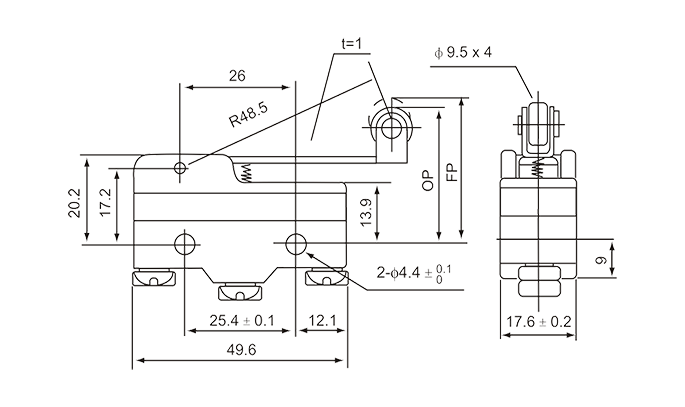

Models

QZ1701

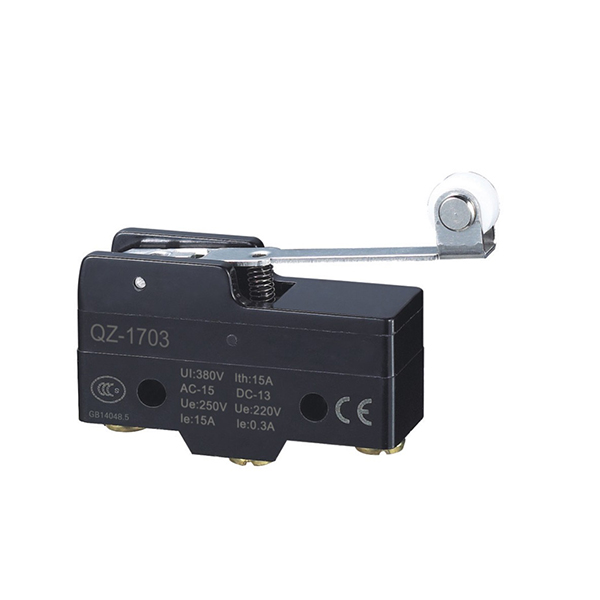

QZ1703

QZ1704

QZ1705

QZ1743

OF(Max.)

70g

100g

160g

10g

160g

RF(Min.)

14g

22g

42g

3g

42g

PT(Max.)

10mm

7.1mm

2.7mm

20mm

2.7mm

OT(Min.)

5.6mm

4mm

2.4mm

5.6mm

2.4mm

MD(Max.)

1.27mm

1.02mm

0.5mm

3mm

0.5mm

FP(Max.)

28.2mm

24.8mm

36.5mm

OP(mm)

19±0.8

30.2±0.8

30.2±0.4

19±0.8

43.1±0.8

Weight(kg)

0.037

0.041

0.034

0.036

0.040

Characteristics Of Contact Module

Rated operating

characteristics

Inductive load：

~AC15,B300 (Ue=240V, Ie=1.5A)

--DC-13,R300 (Ue=250V,Ie=0.1A)

Resistive load：250V, 5A

Rated insulation voltage

Ui=500V, class of pollution is 3, comply with IEC 60947-1

Ui=300V, comply with UL508, CSA C22-2n°14

Insulation sistance

100MΩ above (megohmmeter of 500VDC)

Operating equency

Mechanical: maximum 240 times/min.; electrical: maximum 20 times/min.

Electrical life

500,000 times

Contact resistance

Less than 15MΩ (initial value)

Environmental Characteristics

Normative

reference

Product

IEC60947-5-1, EN60947-5-1,

UL508, CSAC22-2N°14

Components

IEC60204-1, EN60204-1

Ambient

temperature

Operation

-25~+80℃

Storage

-40~+80℃

Vibration resistance

Comply with IEC60068-2-6

10-55Hz complex amplitude 1.5mm, misoperationwithin 1ms (in state of FP, TTP)

Shock resistance

Maximum 300m/s2, misoperation

within 1ms (in state of FP, TTP)

Mechanical life

10,000,000 times

Operation speed

IEC60068-2-27

0.01mm to 1m/sec (lock plug type)
