Digital intelligent panel meter is suitable for measuring and displayingelectrical
parameters of current, voltage,power,frequency in electric grid, automation systems
. Set the rate through the panel, visual display system of a side operating point
parameters. The meters with high accuracy, good stability, resistance to
vibration, etc., candirectly replace the original pointer meter.
|

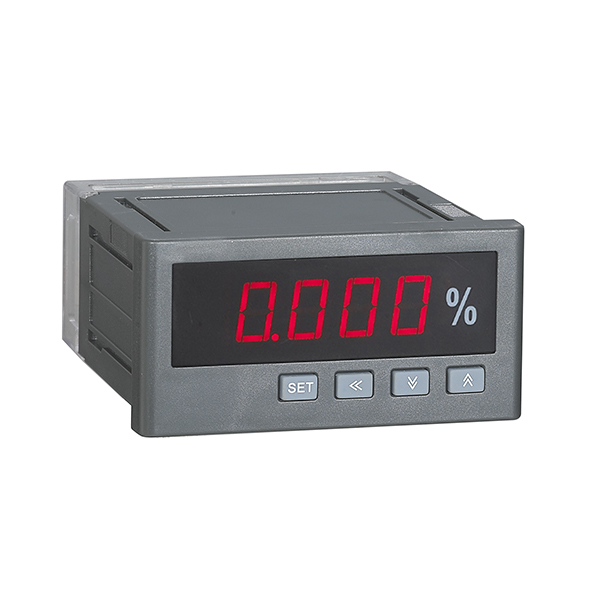

Product name and pictures
|
The basic parameters
|
Model
|
Overall dimensions - depth
|
Hole Size
|
|
Power factor meter
|
LED display input current and voltage is adjustable.
Measurement:The power factor
|
FK-2H-□
|
120×120-93
|
111×111
|
|
FK-9H-□
|
96×96-93
|
92×92
|
|
FK-3H-□
|
80×80-93
|
76×76
|
|
FK-AH-□
|
72×72-93
|
68×68
|
|
FK-BH-□
|
96×48-93
|
92×45
|
|
FK-DH-□
|
48×48-81
|
45×45
|
|
Digital dial indicator
|
LED display input current and voltage is adjustable.
Measurement:The percentage
|
FK-2B-□
|
120×120-93
|
111×111
|
|
FK-9B-□
|
96×96-93
|
92×92
|
|
FK-3B-□
|
80×80-93
|
76×76
|
|
FK-AB-□
|
72×72-93
|
68×68
|
|
FK-BB-□
|
96×48-93
|
92×45
|
|
FK-DB-□
|
48×48-81
|
45×45
|
