Digital intelligent panel meter is suitable for measuring and displayingelectrical
parameters of current, voltage,power,frequency in electric grid, automation systems
. Set the rate through the panel, visual display system of a side operating point
parameters. The meters with high accuracy, good stability, resistance to
vibration, etc., candirectly replace the original pointer meter.
|

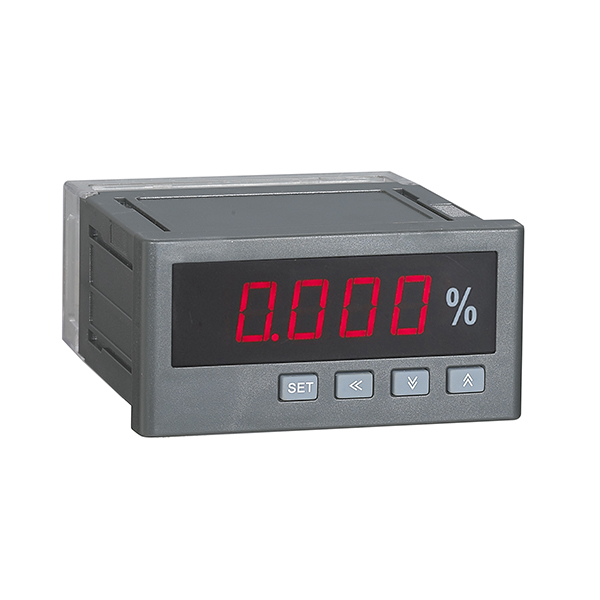

Product name and pictures
|
The basic parameters
|
Model
|
Overall dimensions - depth
|
Hole Size
|
|
Three phase current voltage combination table
|
LED display input current and voltage is adjustable.
Measurement:Three phase current and voltage
|
FK-2IU3-□
|
120×120-93
|
111×111
|
|
FK-9IU3-□
|
96×96-93
|
92×92
|
|
FK-3IU3-□
|
80×80-93
|
76×76
|
|
FK-AIU3-□
|
72×72-93
|
68×68
|
|
FK-DIU3-□
|
48×48-81
|
45×45
|
|
Single phase current voltage frequency combination table
|
LED display input current and voltage is adjustable.
Measurement:Single phase current, voltage and frequency
|
FK-2IUF-□
|
120×120-93
|
111×111
|
|
FK-9IUF-□
|
96×96-93
|
92×92
|
|
FK-3IUF-□
|
80×80-93
|
76×76
|
|
FK-AIUF-□
|
72×72-93
|
68×68
|
|
FK-DIUF-
|
48×48-81
|
45×45
|
Working power supply：AC220V or AC/DC220V Special customized：DC24V、AC380V、440V(ordering instruction)
“□”On behalf of the optional features are as follows:
T:RS485 communication
A:Relay output report to the police
B1、B2、B3、B4：1,2,3 road Analog output(4-20mA/0-20mA ordering instruction)
There is no option function“□” omit，48×48 appearance product can only output all the way.
|
,
